GFP051x Products

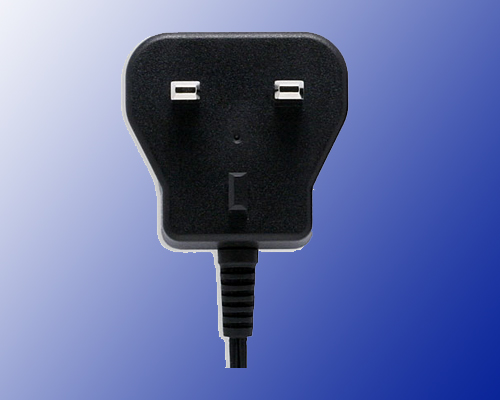

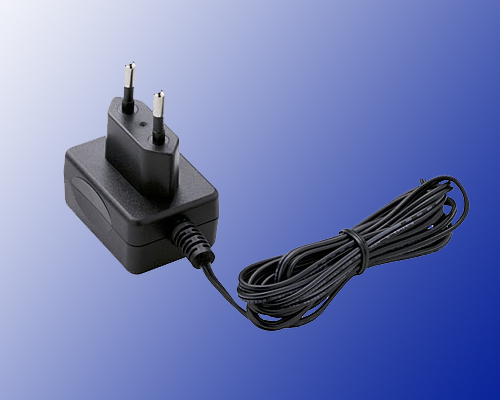

5W：Japan USA CSA  Taiwan   5W：German Eurpoe   5W：England
MODEL:GFP051U   MODEL:GFP051T   MODEL:GFP051K

5W：China   5W：Australia   5W：Japan USA
MODEL:GFP051C MODEL:GFP051A MODEL:GFP051-1


5W Series:        Input Voltage:100-240Vac

3V 3.3V 3.6V 4.2V 4.5V 5V 6V 7.5V 9V 12V 15V 24V
1.5A 1.5A 1.5A 0.7A 0.5A 0.5A 1A 0. 8A 0.65A 0.5A 0.4A 0.25A
* * * 1.2A 1A 1A * * * * * *

[Feature]：
         [C.C / C.V MODE]
         [Super Mini Size and Easy Protable]
         [Light&Convenient Plug In]
[Application]:
         [Lithium Ion Battery Charger]
         [Digital Camera]
         [CD-ROM HUB ADSL AP]
         [Communication Terminals]
         [Tester Machine]
         [Any Protable Device or Machine]
[Input/Output Specifications]:
         [Input Voltage]:                              AC 100-240V,50/60Hz
         [Range Voltage]:                            AC 90--264V,47/63Hz
         [Output Power]:                              5W
         [Output Voltage]:                            3V-24V
         [Over Voltage Protection]:                120%min
         [Over Current Protection]:                120%min
         [Short Protection]:                          Auto Recovery
         [Load Regulation]:                          ±5%
[General Specifications]:
         [Operating Temperature]:                  0~40℃
         [Storage Temperature]:                    -20~85℃
         [Operating Relative Humidity]:           5~95%RH
         [Withstanding Voltage]:                    AC 2000V(Min),5mA(Max)
         [Insulation Resistance]:                   DC 500V  100MΩ(Min)
[Safety]: UL/cUL  PSE  GS  SAA  C-Tick  BS  CE  CB  FCC  CCC  BSMI
